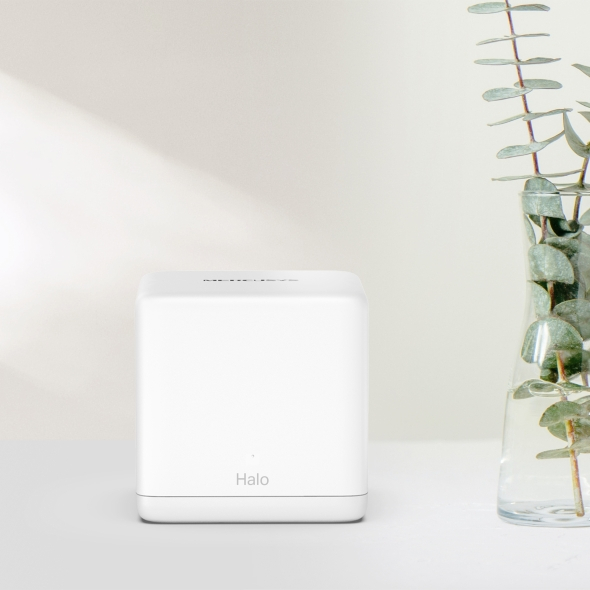

Mercusys Halo H60X AX1500 Whole Home Mesh WiFi 6 System, 2-pack

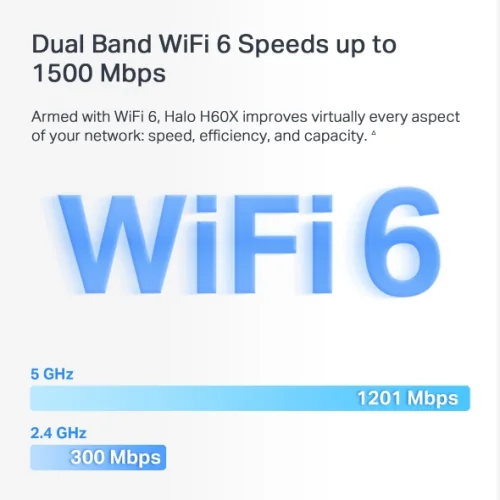

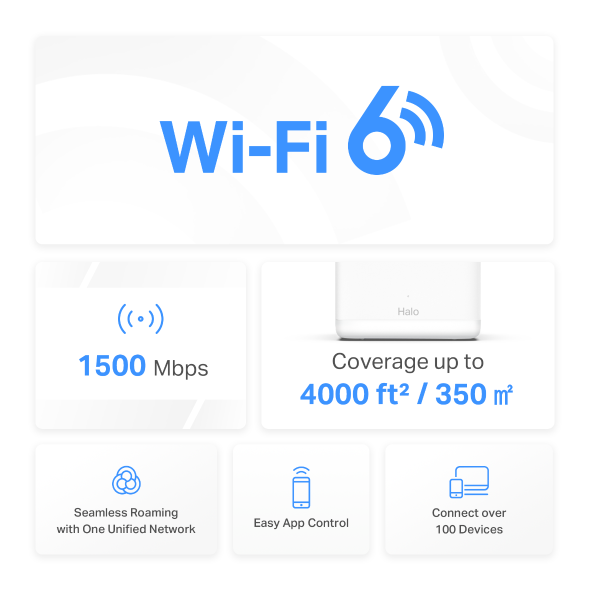

Dual-band WiFi 6 Speeds up to 1500 Mbps – 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

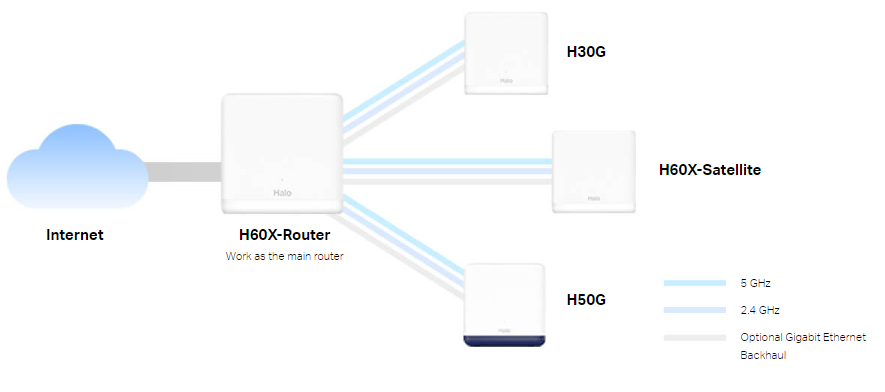

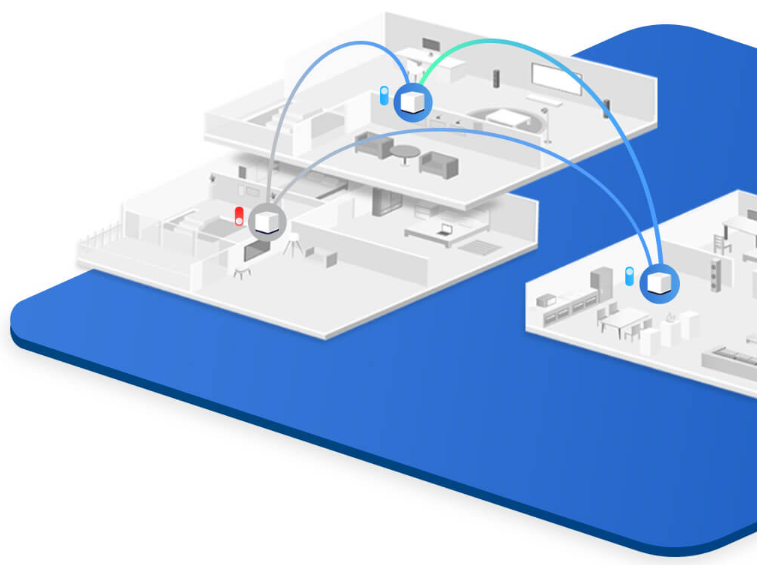

Seamless roaming with one unified network – Halo devices work together to automatically switch between Halos as you move around your home with one unified WiFi name and password.

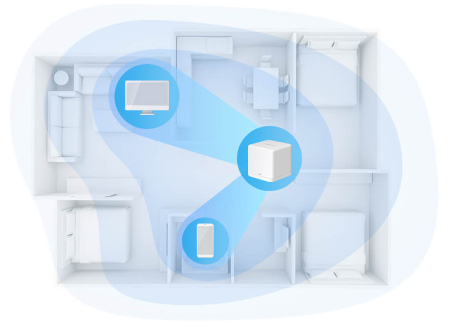

Whole Home Coverage – Blanket to 4000 ft² (350 m²) with high-speed WiFi, eliminating WiFi dead zones in your home.

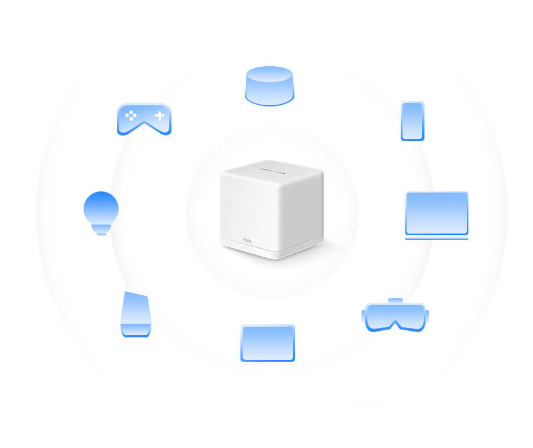

Connect over 100 devices – Ensure fast and stable connections over 100 devices.
Manage your home network easily – use the MERCUSYS application to quickly set up and manage your WiFi. You can also manage your kids online time and content.

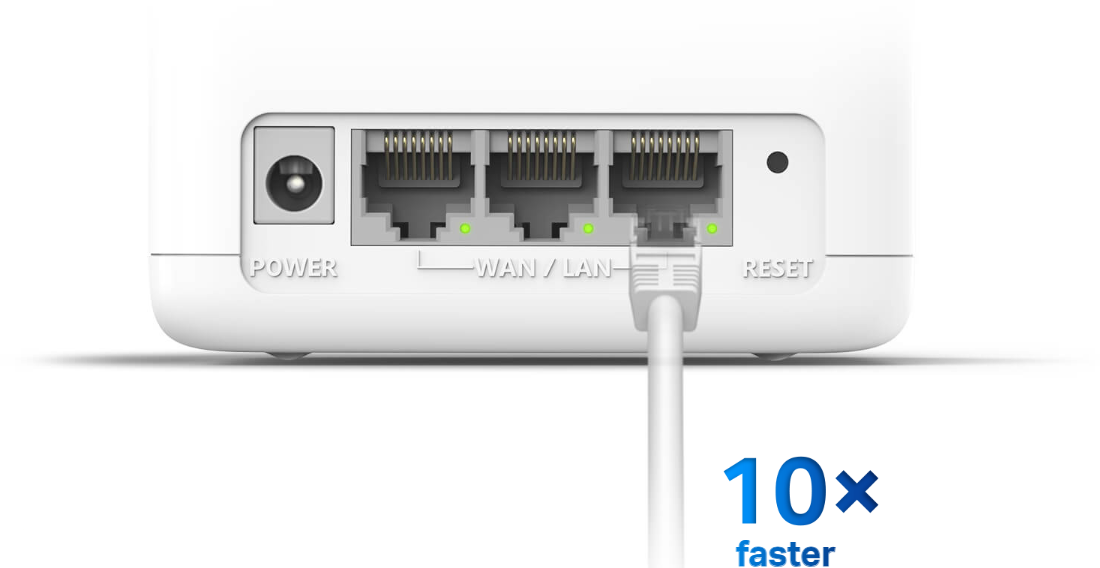

Full gigabit ports – gigabit ports for lightning fast wired connections.

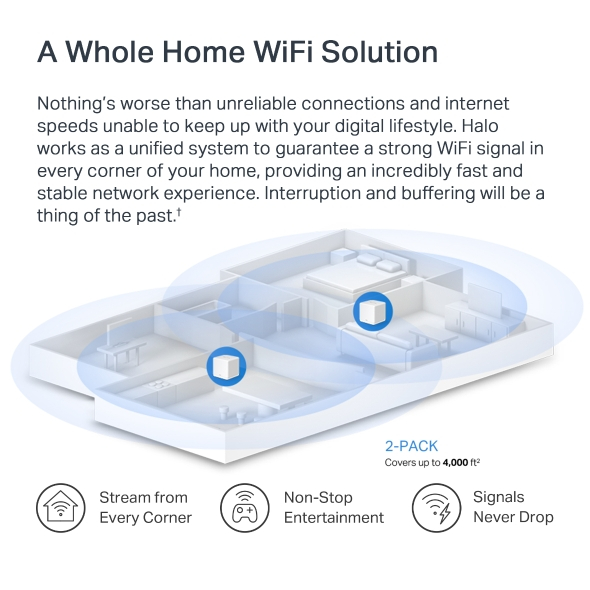

There's nothing worse than unreliable connections and internet speeds that can't keep up with your digital lifestyle. Halo works as a single system to ensure a strong WiFi signal in every corner of your home, providing an incredibly fast and stable network experience. Interruption and buffering will be a thing of the past.
Product features:
| Wi-Fi 6 | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4GHz |
|---|---|
| WiFi speeds | 1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz |
| Reception sensitivity | 2.4 GHz: 11g 6Mbps:-96.5dBm 11g 54Mbps:-78dBm 5GHz: 11a 6Mbps:-96dBm 11a 54Mbps:-78dBm 11ac VHT20 MCS8:-74.5dBm 11ac VHT40 MCS9:-70.5dBm 11ac VHT80 MCS9:-66.5dBm 11ax HE20 MCS11:-66dBm 11ax HE40 MCS11:-63dBm 11ax HE80 MCS11:-61dBm |
| Transmit Power | 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3 |
| Network protocol | 802.11k/v/r |

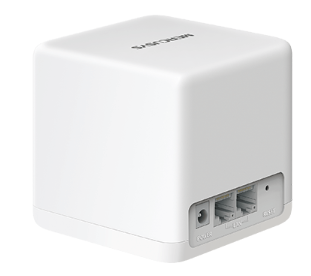

| Sizes | 3.5 × 3.5 x 3.5 inches (88 x 88 x 88 mm) |

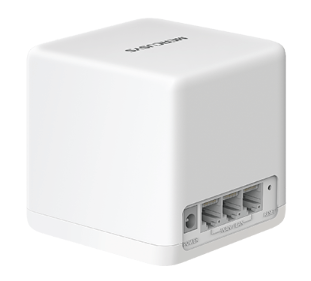

| Interfaces | Halo H60XR: 3× Gigabit WAN/LAN ports Halo H60XS: 2 × Gigabit LAN ports |
| Button | Restart Button |
| Modes of operation | Router, access point |
| Quality of Service | WMM |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Local management, remote management, multi-managers |
| DHCP | Server, Client |
| Firewall Security | SPI Firewall |
| Protocols | Supports IPv4 and IPv6 |
| Guest Network | 2.4 GHz guest network, 5 GHz guest network |
| Package Contents | Pack of 2 1× Halo H60XR module+ 1× Halo H60XS module 1× RJ45 Ethernet cable 2× power adapters Quick Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
| Warranty | 36 months |
