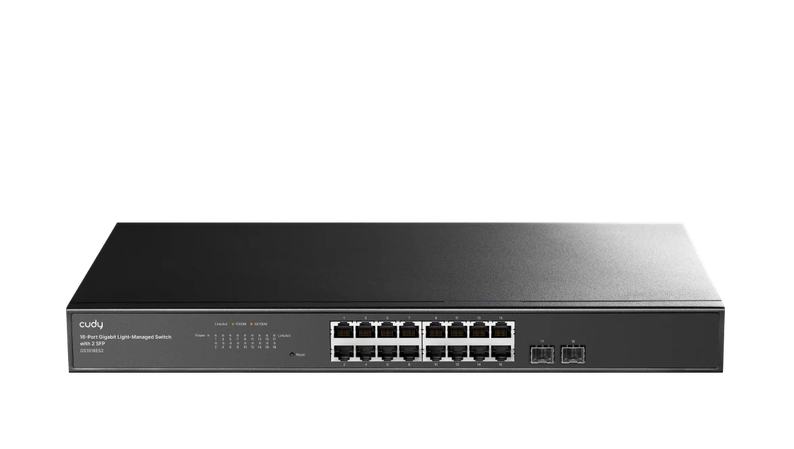

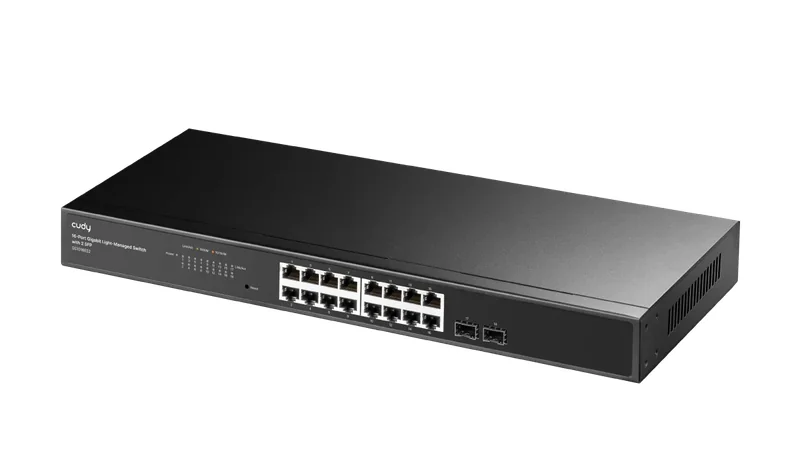

Cudy GS1016ES2 16-Port Gigabit Light Managed Switch with 2 SFP
Specifications:
| Switch type | Fixed Port |
|---|---|
| Total number of ports | 18 |
| Main port type | 16x10/100/1000Base-T |
| Power Over Ethernet (PoE) | No |
| Uplink ports | 2xSFP |
| Available (10Gb) slots | No |
| Management | Web Management, SNMP, Port Management |
| Stackable | No |
| Fans | Fanless design |
| Power supply | 100-240V 50/60Hz |
| Routing | Layer 2 Only |
| Memory (Flash, RAM) | - |
| Routing/switching capacity, Gbps | 36 Gbps |
| Bandwidth, Mpps | 26.78 Mpps |
| MAC addresses | 8192 MAC address table size |
| VLAN (number, standards) | VLAN (802.1Q/MTU/Voice/Port-Based) |
| QoS | QoS (802.1p/DSCP/Port-Based) |
| L2 network standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1w, IEEE 802.1p, IEEE 802.1q, IEEE 802.1ab |
| L3 network standards | - |
| IPv6 functionality | - |
| Security | IEEE 802.3x flow control, STP/RSTP and Loop Prevention |
| Dimensions (W, L, H), mm | 440 x 180 x 44 mm |
| Mounting option | Desktop/Rackmount |
| Warranty | 36 months |
