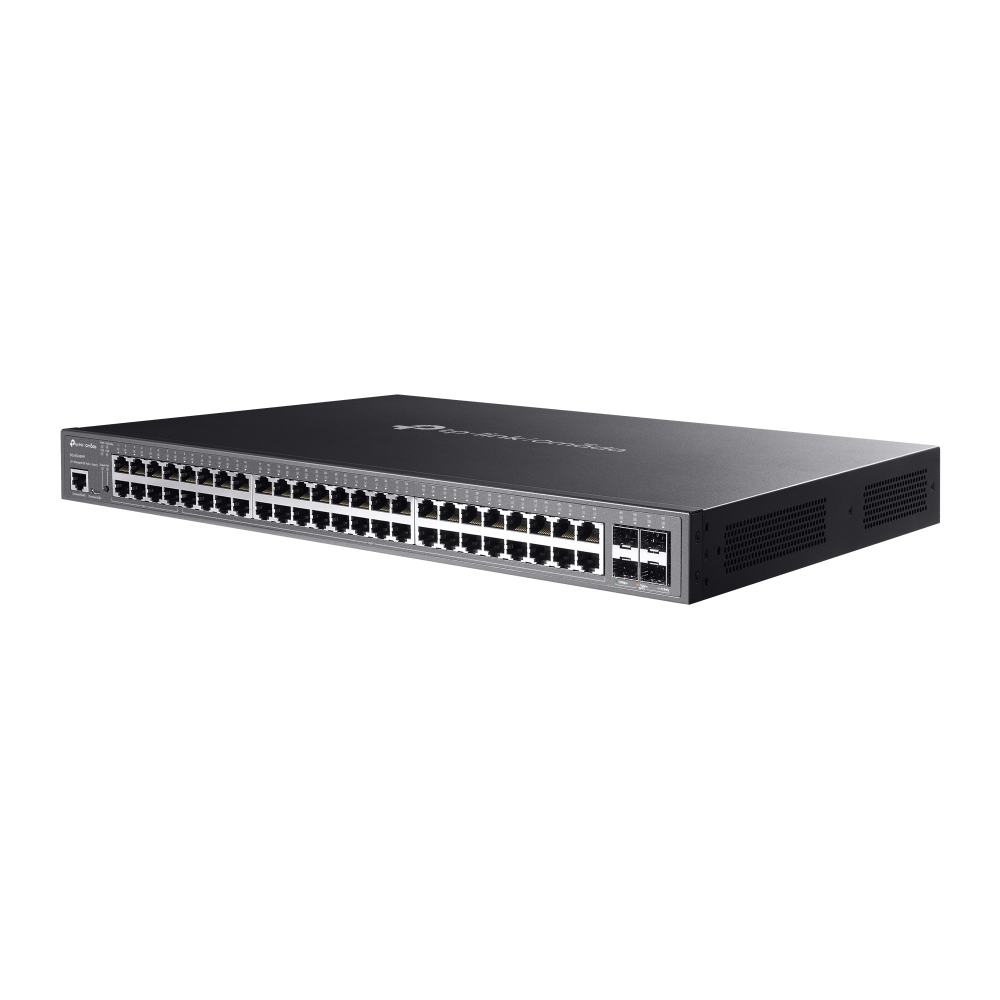

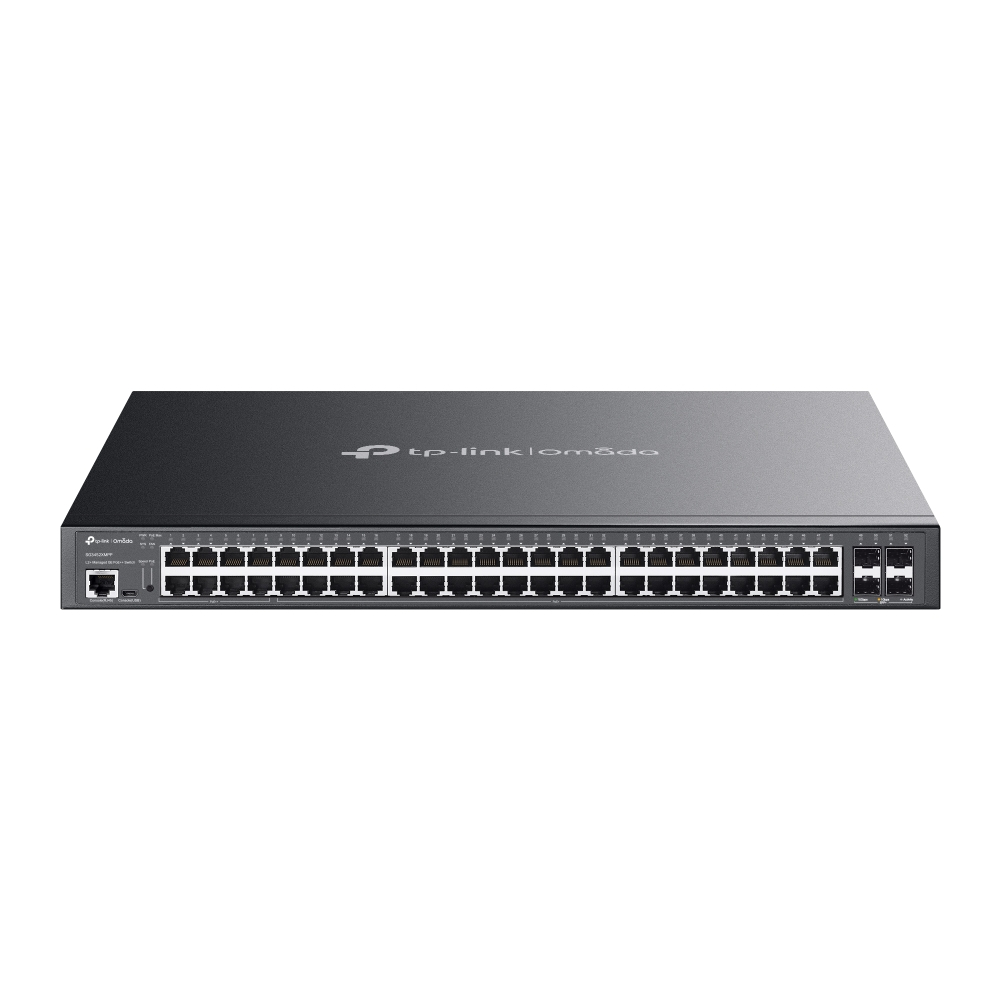

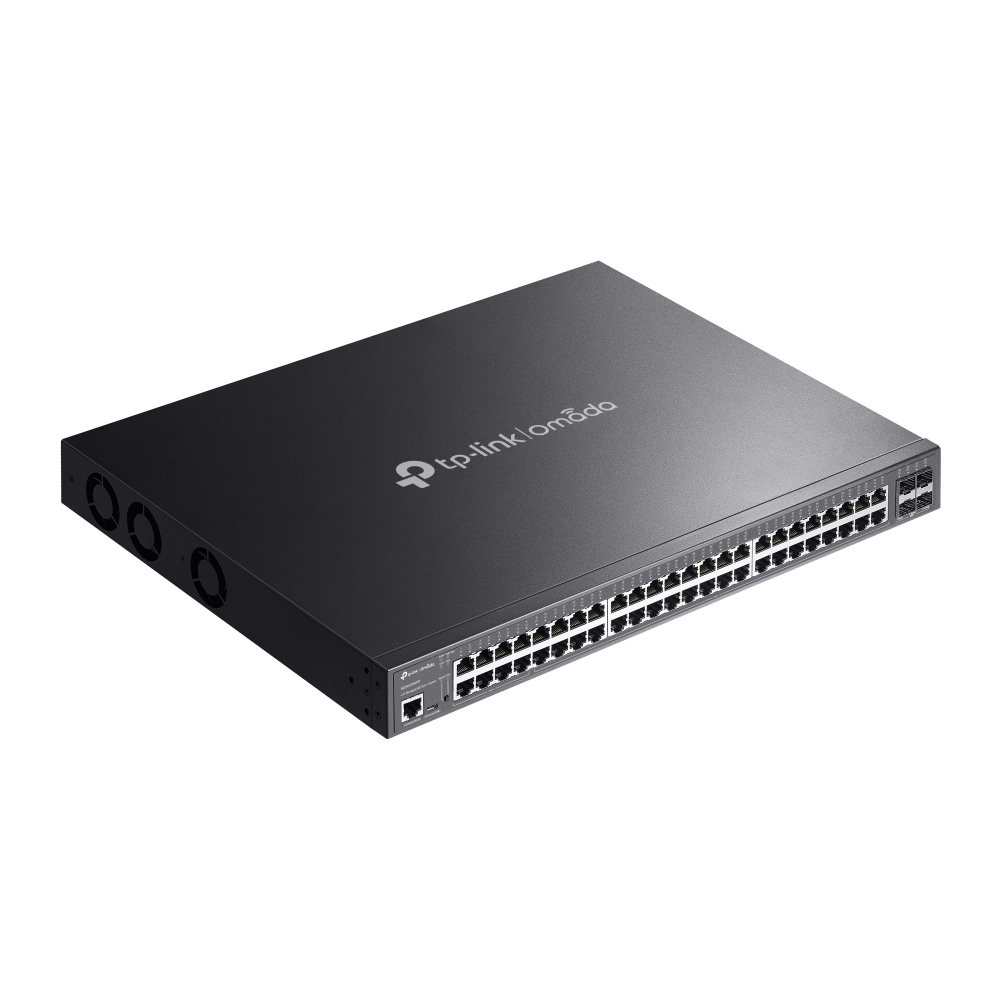

Managed L2+ Switch 48G+4×10GE with PoE+/PoE++ Omada
48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ and 8-Port PoE++ TP-Link Omada SG3452XMPP
- 4× 10 Gbps SFP+ slot
- 8× gigabit 802.af/at/bt PoE++ ports (maximum 90W PoE budget per port)
- 40× Gigabit 802.3af/at PoE+ ports (maximum 30W budget for each port)
- 750W total PoE budget
- Centralized cloud management via web or Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports fast protection and recovery in ring topology
- Durable metal housing and rack-mountable design
48× Gigabit RJ45 ports (8× PoE++, 40× PoE+)
4× 10 Gbps SFP+ slots
750 W total PoE budget (max. 90 W per PoE++ port)

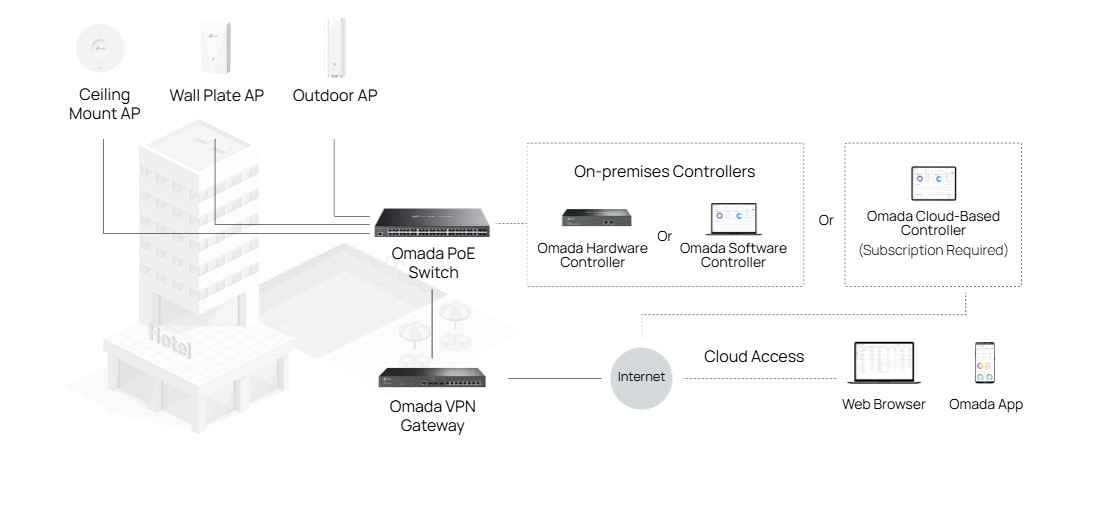

Centralized management
Omada application
Zero-Touch Provisioning
Ethernet Ring Provisioning
Static routing

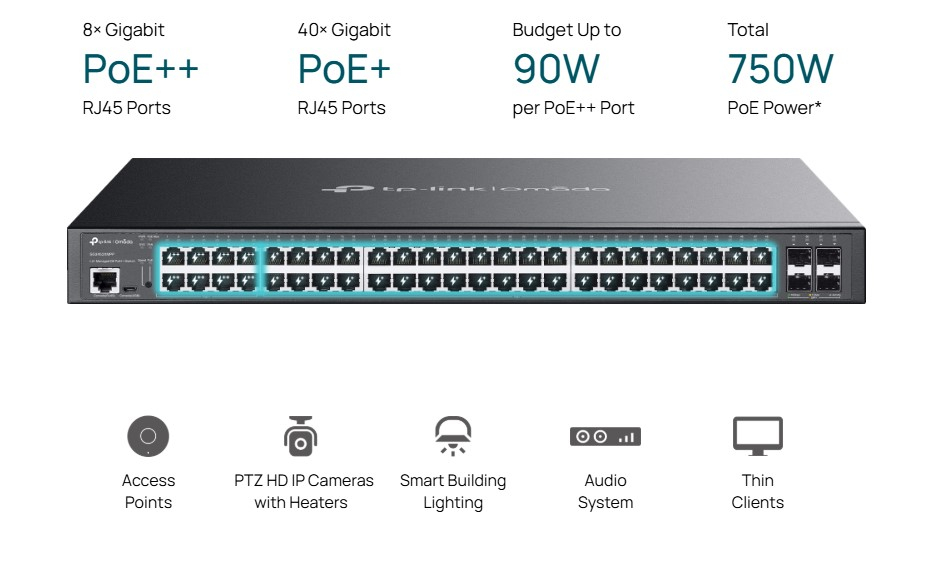

Power high-power devices with Gigabit PoE++ ports
8× Gigabit
PoE++ RJ45 ports
40× Gigabit
PoE+ RJ45 ports
Up to 90 W budget per PoE++ port
Total 750 W PoE power*
| Ethernet ports: | 1× RJ45 Console Port 48× 10/100/1000 Mbps RJ45 Ports |
| Mounting Type: | Rackmount |
| Performance: | Switching Capacity 176 Gbps |
| Power Supply: | 100-240 V AC~50/60 Hz |
| Interface: | 1× Micro-USB Console Port 1× RJ45 Console Port 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+) 4× 10G SFP+ Slots |
| Appendix: | Rackmount |
