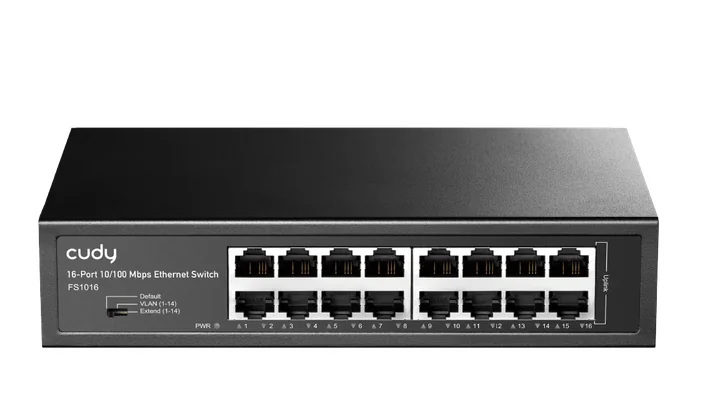

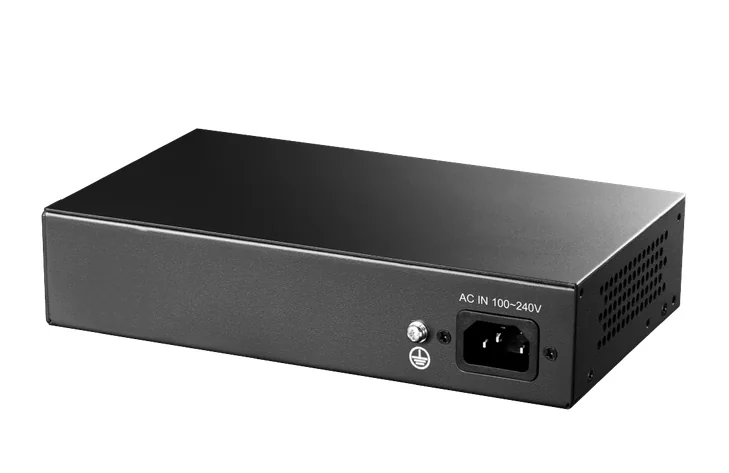

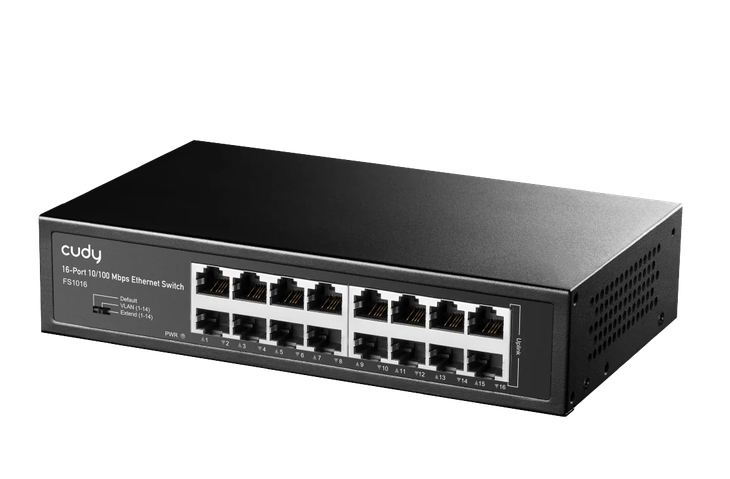

Cudy FS1016 16-Port 10/100 Mbps
Specifications:
| Switch type | Fixed Port |
|---|---|
| Total number of ports | 16 |
| Main port type | 16x10/100Base-TX |
| Power Over Ethernet (PoE) | No |
| Uplink ports | 0 |
| Available (10Gb) slots | No |
| Management | No |
| Stackable | No |
| Fans | Fanless design |
| Power supply | 90~260V 50/60Hz |
| Routing | Layer 2 Only |
| Memory (Flash, RAM) | - |
| Routing/switching capacity, Gbps | 3.2 Gbps |
| Bandwidth, Mpps | 2.38 Mpps |
| MAC addresses | 8000 MAC address table size |
| VLAN (number, standards) | Extend/Normal/VLAN DIP Switch for 250 meters transmission or improved expansion security |
| QoS | - |
| L2 network standards | IEEE802.3, IEEE802.3u, IEEE802.3x |
| L3 network standards | - |
| IPv6 functionality | - |
| Security | Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode |
| Dimensions (W, L, H), mm | 200 x 118 x 44 mm |
| Mount option | Desktop/Rackmount |
| Warranty | 36 months |
