TP-LINK TL-SG108S 8-port gigabit switch

  • Brand: TP-LINK
  • Product code: 2006935364083526
Please login

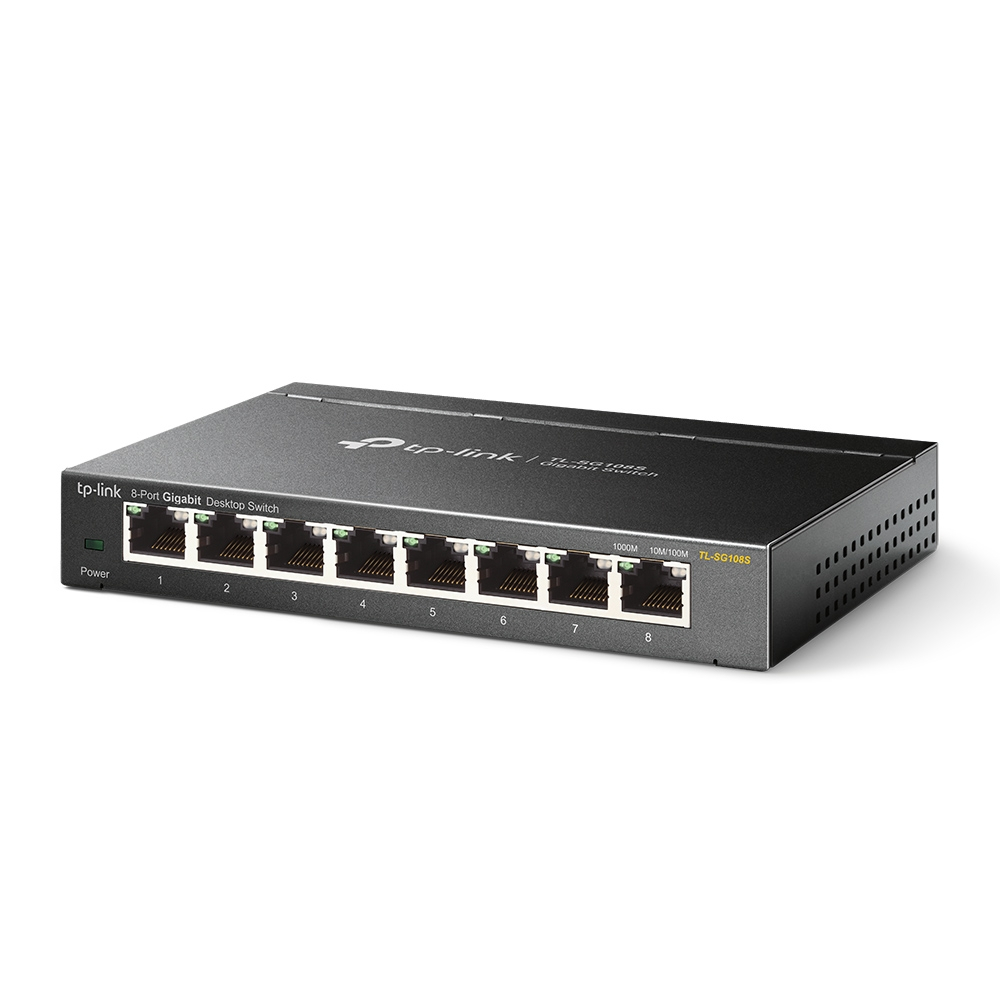

TP-LINK TL-SG108S 8-Port Gigabit Switch

  • 8 10/100/1000 Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control ensures reliable data transfer
  • Steel housing, desktop or wall mounting
  • Supports 802.1p / DSCP QoS and IGMP Snooping function
  • Just plug it in and connect, no configuration required

What does this product do?
The 8-Port Gigabit Switch provides an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and network connections or make Gigabit connectivity a reality.
The plug and play design, with no configuration required, makes the product easy to use. In addition, the TL-SG108S uses lower power consumption.
With innovative energy-efficient technology, the TL-SG108S can save power consumption, making it an environmentally friendly solution for your home or office network.

Gigabit Switch
Featuring 8 10/100/1000 Mbps ports, the TL-SG108S greatly expands your network capacity, allowing for instant transfer of large files.
Transfer graphics, CGI, CAD or multimedia files to the network instantly.

Go Green
Now you have the choice to go green when you upgrade to a Gigabit network! This new generation TL-SG108S features the latest innovative energy-efficient technologies,
which can greatly expand your network capacity with much less power. The switch automatically adjusts power consumption according to link status and cable length to limit your network's carbon footprint.

Traffic Optimization
802.1p and DSCP QoS ensure smooth delay-sensitive traffic such as voice and video, and IGMP Snooping optimizes multicast data flow.

Easy to Use
The switch's automatic features make installation easy and hassle-free.
No configuration required. Auto MDI/MDIX eliminates the need for crossover cables.
Each port's auto-negotiation detects the connection speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Plus, the fanless design ensures quiet operation.

Ethernet Ports:  16 Gbps
Mounting Type:  Desktop
Storage Humidity:  5%~90% non-condensing
Operating qualities:  Jumbo Frame 16KB
Mac Address Table 4K
Packet Buffer Memory 1.5Mpps
Packet Forwarding Rate 11.9Mpps
Power:  External Power Adapter (Output: 5VDC / 0.6A)
Max. power consumption: 3.31W
Interface:  (8) 10/100/1000 Ethernet Ports
Switching protocol:  Ethernet
Switching method:  Store and Forward
Network features:  Auto-Negotiation
MDI/MDI-X switch
Cooling:  Passive
Operating Humidity:  10%~90% non-condensing
Operating Temperature:  0℃~40℃ (32℉~104℉)
Height Dimensions:  25 mm
Depth Dimensions:  101 mm
Width Dimensions:  158 mm
Certificates:  CE, FCC, RoHS
Software features:  802.3X Flow Control, supports QoS (IEEE802.1P)
Green Technology, saving power up to 80%
IGMP Snooping function
Compatibility with network standards:  IEEE 802.1p
IEEE 802.3ab
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
Temperature of storage:  -40℃~70℃ (-40℉~158℉)
Type:  Unmanaged
