Brother Label Printer TJ-4522TN
Characteristics

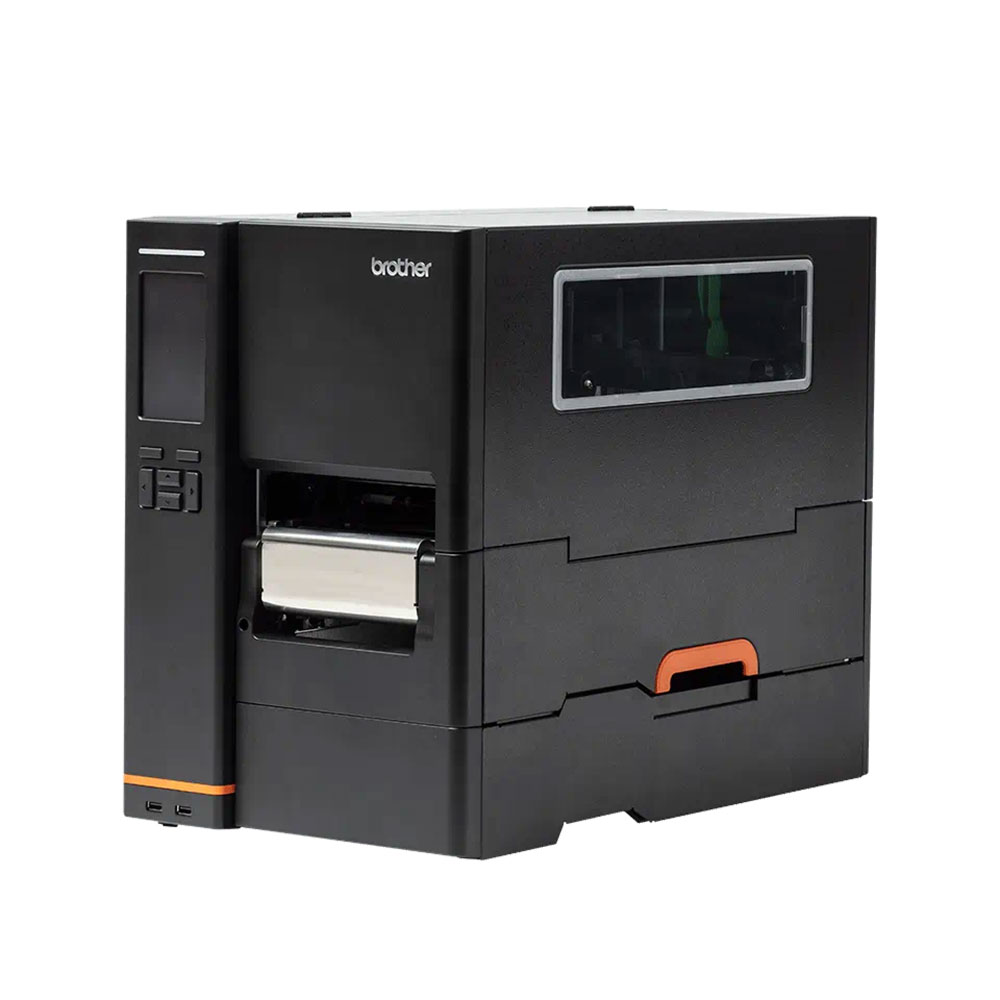

Brother TJ-4522TN Industrial Label Printer
4-inch industrial label printer offering a print width of up to 104 mm and a print speed of up to 12 ips, equipped with a touch display and an internal rewinder
Print more than 1,000 labels per day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer.
With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewind roll, this durable industrial printer is built for you.
Take advantage of the efficient labeling solutions and high performance you can count on with the TJ-4522TN industrial label printer.
Key features:
Print speed up to 12 ips at 300 dpi
Touch display designed for easy setup and operation
Print width up to 104 mm
FBPL-EZD printer command languages supported (EPL2, ZPL2, DPL)
600 meter high capacity thermal transfer ribbon, More printing with less consumable replacement.
Easy connection with USB, USB host, serial port, Wired network connection and optional wireless interface (WiFi and Bluetooth)
Contents in the box:
AC adapter power cord
Label Design Software - Bartender Ultra Lite Edition (Downloadable)
USB cable
Quick Installation Guide
Product features:
| Buttons | Feed, Feed |
|---|---|
| Display | Color touch screen |
| Flash RAM memory | 512 MB |
| LED | Power, Status, Error |
| RAM | 256 MB |
| Technology | Thermal transfer printing / Direct thermal printing |
| Bluetooth | Module v4.2 (optional accessory) |
| Bluetooth Profiles | SPP (Bluetooth classic), GATT (Bluetooth low energy) |
| Serial | RS-232 (Max. 115200 bps) |
| USB interface | USB 2.0, USB Host |
| Wired Network Interface | 10/100 Mbps |
| Wireless Network Interface | 802.11 a/b/g/n module (optional accessory) |
| Sizes | 276mm (W) x 412mm (H) x 502mm (D) |
| Weight | 18.93 kg |
| Linux | Linux |
| Macintosh | Mac OS X 10.11.x or later |
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 7, Windows 8.1, Windows 10 |
| Android | V5 or later |
| IOS | iOS® 9 or later |
| Unidimensional barcode systems | Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPENN number, PLANET, Code49, Deutsche Post Identcode , Deutsche Post Leitcode, LOGMARS |
| Two-dimensional barcode systems | CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417, TLC 39 |
| Tag recognition sensor | Yes |
| Maximum label width | 114 mm |
| Maximum print length | 11430 mm |
| Maximum print width | 104mm |
| Resident Fonts | 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Resolution (dpi) | 300 |
| Standard print speed | 305 mm/second |
| Supported Commands | FBPL-EZD (EPL2, ZPL2, DPL) |
| SDK (Software Development Kit) | Yes |
| Warranty | 3 years |
