Brother Label Printer TJ-4520TN
Characteristics

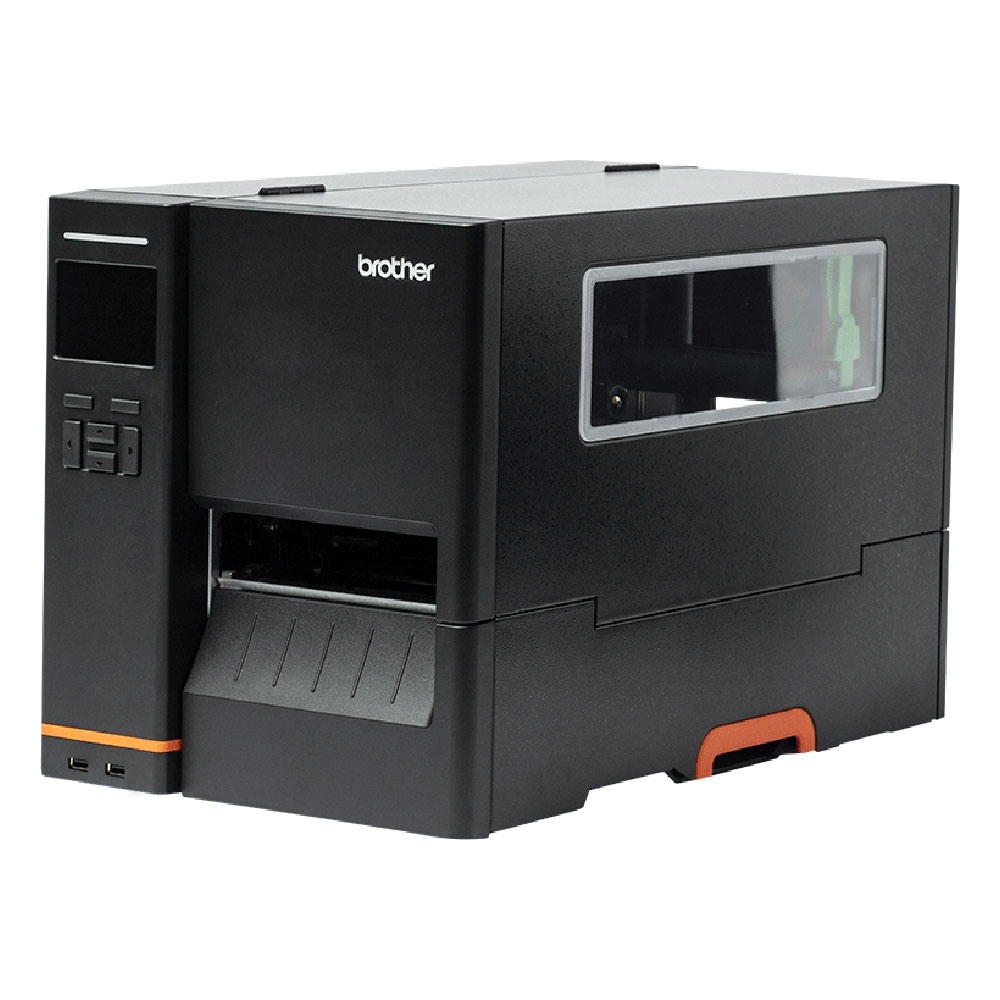

Brother TJ-4520TN industrial label printer
4-inch industrial thermal label printer with LCD display, print width up to 104 mm and print speed up to 12 ips
Print more than 1,000 labels per day, even in the toughest production environments, with the Brother TJ-4520TN Industrial Label Printer.
With fast print speeds, ZPL2 emulation compatibility and high tape capacity, this durable industrial printer is built with you in mind.
Enjoy efficient labeling solutions and performance you can count on with the TJ-4520TN industrial label printer.
Main features:
- Print speed up to 12 ips at 300 dpi
- LCD display indicating printer status
- Print width up to 104 mm
- FBPL-EZD printer command languages supported (EPL2, ZPL2, DPL)
- High capacity thermal transfer ribbon of 600 meters means less frequent replacement of consumables
- Easy connectivity with USB, USB host, serial, Ethernet and optional wireless interface (WiFi and Bluetooth)
Contents in the box:
AC adapter power cord
Label Design Software - Bartender Ultra Lite Edition (Downloadable)
USB cable
Quick Installation Guide
Product features:
| Buttons | Feed, Feed |
|---|---|
| Display | LCD display |
| Flash RAM memory | 512 MB |
| LED | Power, Status, Error |
| RAM | 256 MB |
| Technology | Thermal transfer printing / Direct thermal printing |
| Bluetooth | Module v4.2 (optional accessory) |
| Bluetooth Profiles | SPP (Bluetooth classic), GATT (Bluetooth low energy) |
| Serial | RS-232 (Max. 115200 bps) |
| USB interface | USB 2.0, USB Host |
| Wired Network Interface | 10/100 Mbps |
| Wireless Network Interface | 802.11 a/b/g/n module (optional accessory) |
| Dimensions | 276mm (W) x 326mm (H) x 502mm (D) |
| Weight | 15.35 kg |
| Linux | Linux |
| Macintosh | Mac OS X 10.11.x or later |
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 7, Windows 8.1, Windows 10 |
| Android | V5 or later |
| IOS | iOS® 9 or later |
| Unidimensional barcode systems | Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPENN number, PLANET, Code49, Deutsche Post Identcode , Deutsche Post Leitcode, LOGMARS |
| Two-dimensional barcode systems | CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417, TLC 39 |
| Label Recognition Sensor | Yes |
| Maximum label width | 114mm |
| Maximum print length | 11430 mm |
| Maximum print width | 104mm |
| Resident Fonts | 8 alpha-numeric bitmap fonts, Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Resolution (dpi) | 300 |
| Standard print speed | 305 mm/second |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
| SDK (Software Development Kit) | Yes |
| Warranty | 3 years |
