MikroTik hAP ax S E62iUGS-2axD5axT Access point

Please login

hAP ax S is MikroTik's most affordable Wi-Fi 6 access point, offering high performance and flexibility without compromising on quality. It features dual-band Wi-Fi 6, triple 5 GHz antenna with up to 900 Mbit/s real speed, 5 × Gigabit Ethernet ports, 2.5G SFP slot and dual-core ARM CPU.

Triple 5 GHz antenna – stable gigabit Wi-Fi connection with real speed around 800-900 Mbit/s. Suitable for smooth streaming, fast downloads and VR applications.
Dual-band Wi-Fi 6 – modern standard for faster and more reliable wireless connection.

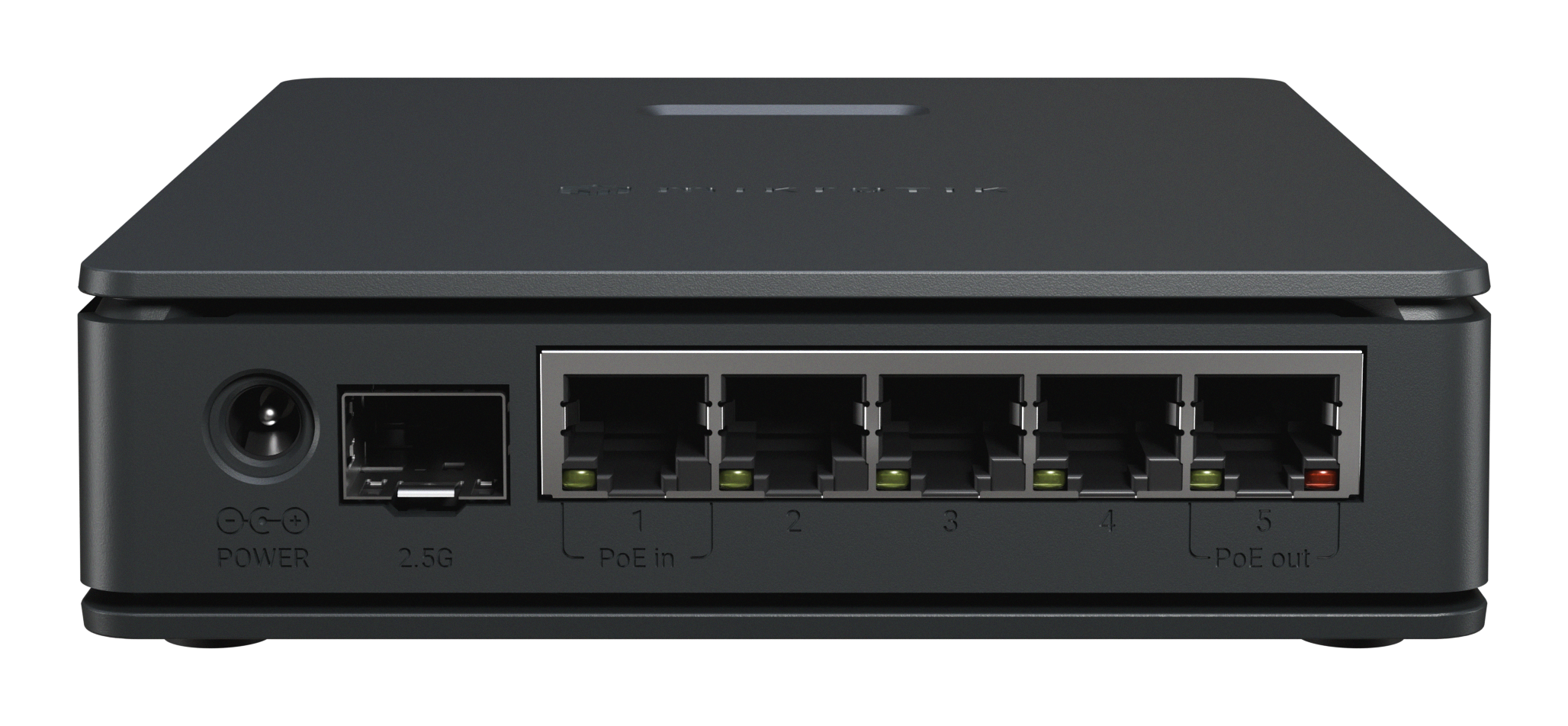

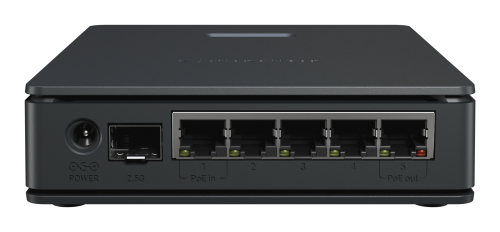

5 × Gigabit Ethernet + 2.5G SFP – ability to connect fiber-to-home, high-speed NAS or other devices.
Dual-core ARM CPU – efficient processing for high-performance networks.
Dual power supply – standard DC jack or PoE-in, plus passive PoE-out to power another MikroTik device.
RouterOS v7 – full-featured operating system with VLAN, firewall, VPN tunnels, traffic shaping, scripting, SMS automation and more. No subscriptions or locked features.

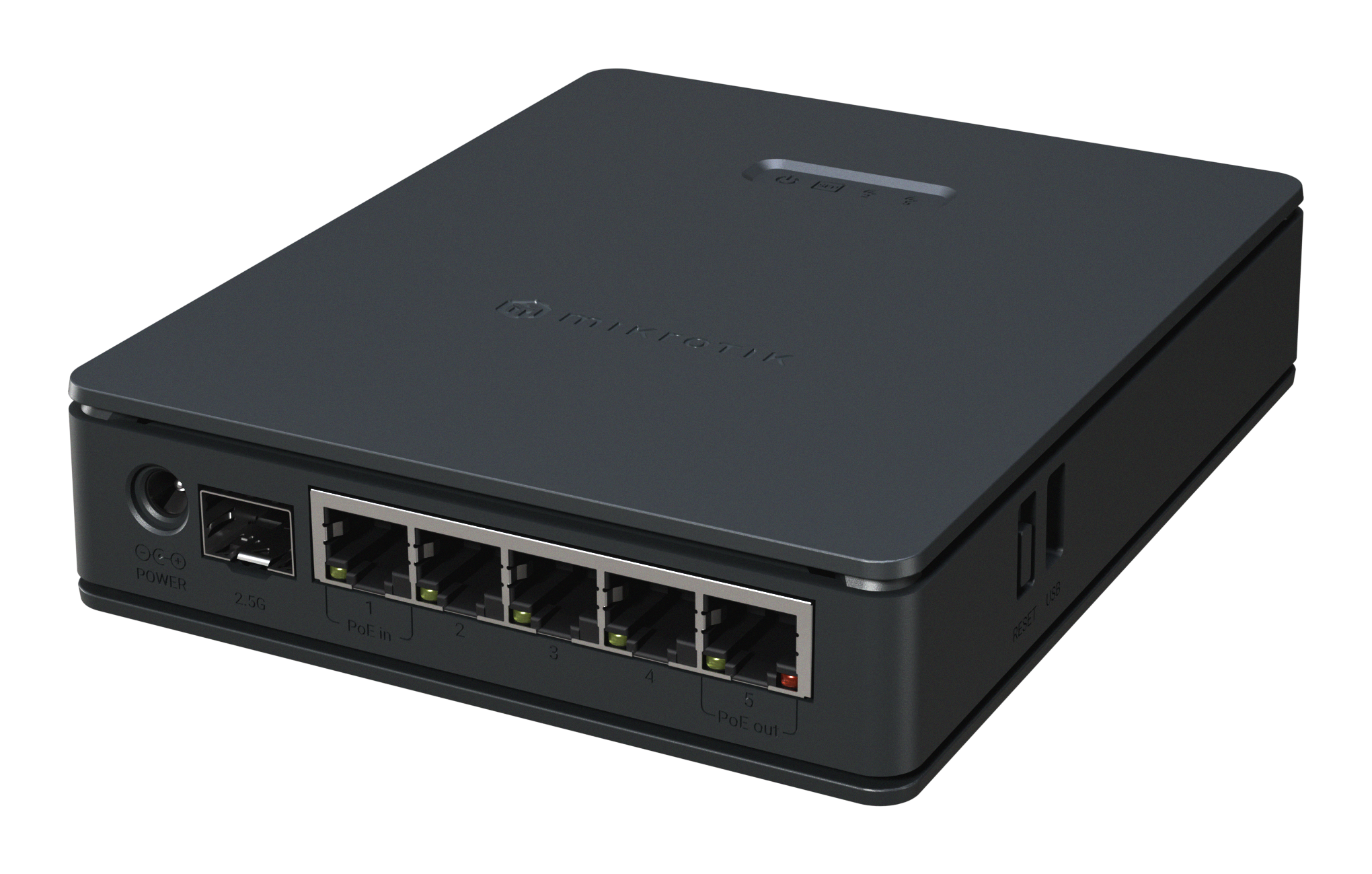

Rugged, wall-mountable design – suitable for home and small office networks.
A cost-effective solution with Wi-Fi 6 and high performance.
Ideal for VR streaming, gaming and multi-user environments.
Flexible power supply and PoE-out for additional devices.
Full control over the network with RouterOS v7.

Applications:
Home and small office Wi-Fi networks
Dedicated Wi-Fi 6 VR streaming points
High-speed LAN connections via Ethernet or SFP
Future-oriented networks with full flexibility of RouterOS

Processor and system
Architecture ARM 32bit
CPU EN7562CT, 2 cores, 950 MHz, 2 threads
Switch Chip Model EN7523
RouterOS License 4
Operating System RouterOS v7
RAM 512 MB
Storage 128 MB NAND
MTBF ~100,000 hours at 25°C
Tested Operating temperature -40°C to 70°C
Wireless capabilities
2.4 GHz Max. 574 Mbit/s, 2 pairs of antennas, 802.11b/g/n/ax, 5.5 dBi gain, Chip MT7916, Wi-Fi 6
5 GHz Max. 1800 Mbit/s, 3 pairs of antennas, 802.11a/n/ac/ax, gain 8.07 dBi, Chip MT7976, Wi-Fi 6
Wi-Fi speed AX2400
Ethernet and Fiber
Ethernet ports 5 × 10/100/1000
PoE-Out 1G port 1 (Ether5)
SFP port 1 (supports 2.5G)
Peripherals

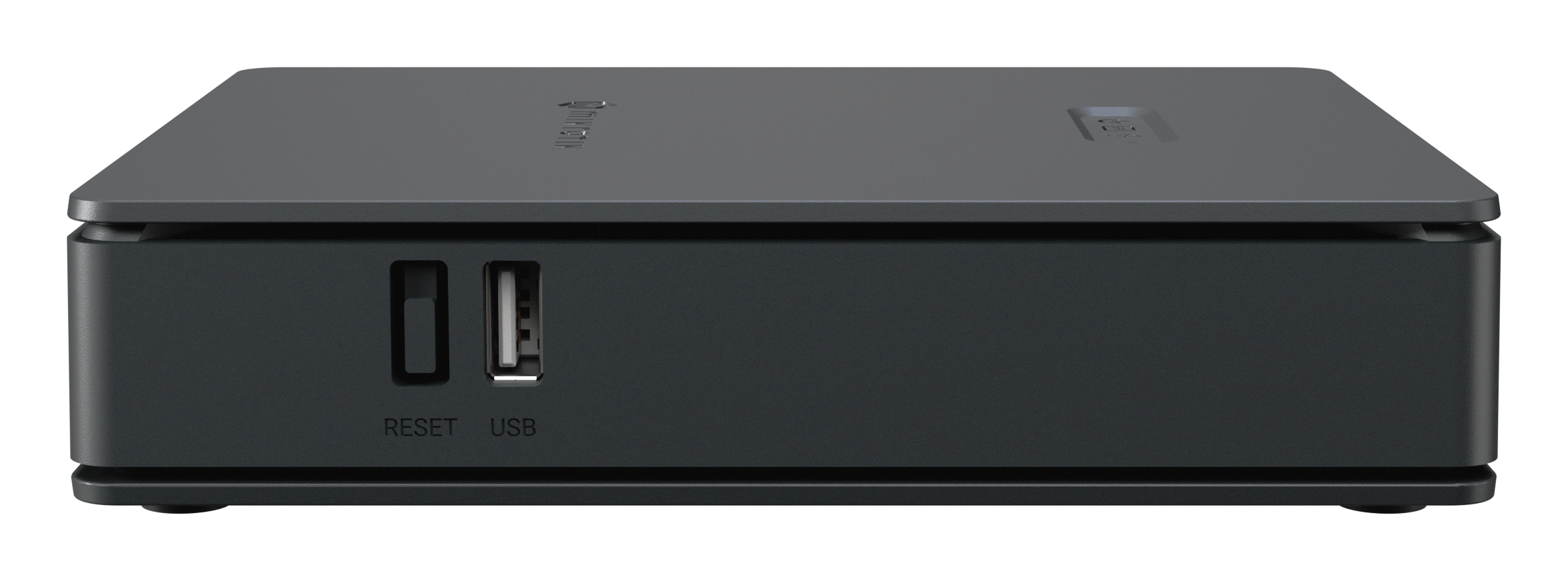

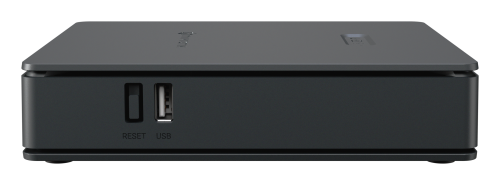

USB ports 1 × USB Type A
USB Power Reset Yes
Max. USB current 1 A
Power
DC inputs 2 (DC jack, PoE-IN)
DC input voltage 12–28 V
Max. power consumption 34 W (11 W without peripherals)
PoE-IN Passive 18–28 V
PoE-Out Passive, Ether5, current limit 0.6 A, total power 16.8 W
Cooling Passive
Certifications and approvals
Certifications CE, FCC, IC, EAC, ROHS
IP rating IP20
Other Features
CPU Temperature Monitoring Yes
Included Parts Power Supply 24V 1.5A
