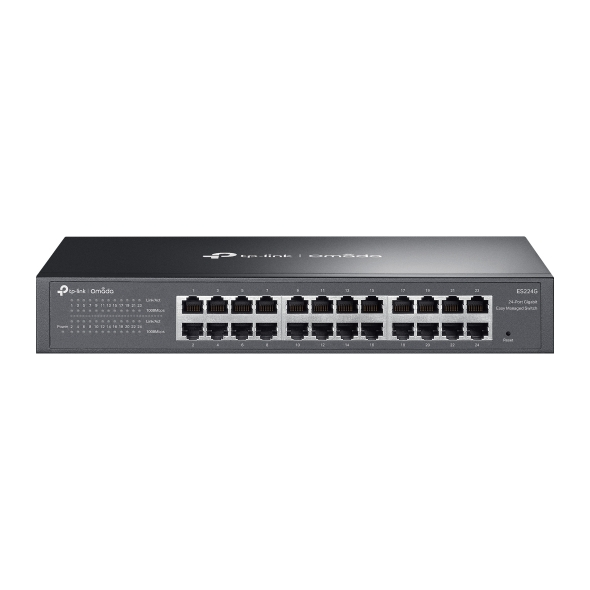

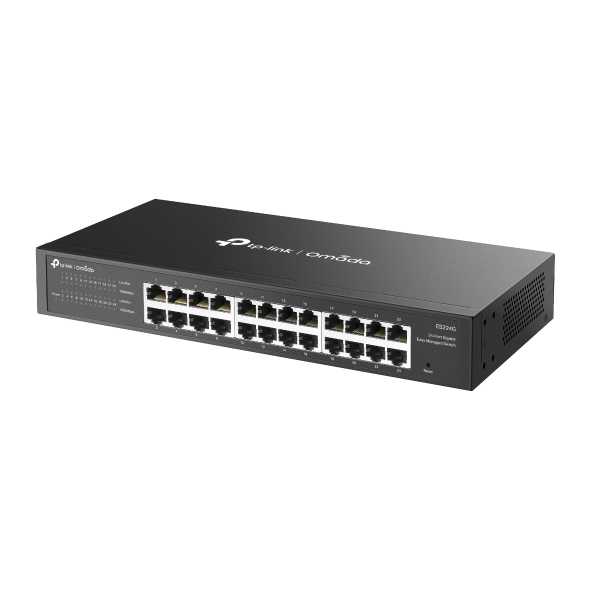

TP-Link Omada ES224G Switch
24-port switch TP-Link Omada ES224G Gigabit Easy Managed Switch
- 24× 10/100/1000Mbps RJ45 ports
- Ease of use: Plug-and-play support for instant connectivity and simple configuration of additional features
- Centralized management via the cloud: accessible via web or Omada app
- VLAN, port isolation, cable testing, QoS for reliable video surveillance networks
- Automatic loop prevention and IGMP Snooping
- Fanless design for silent operation

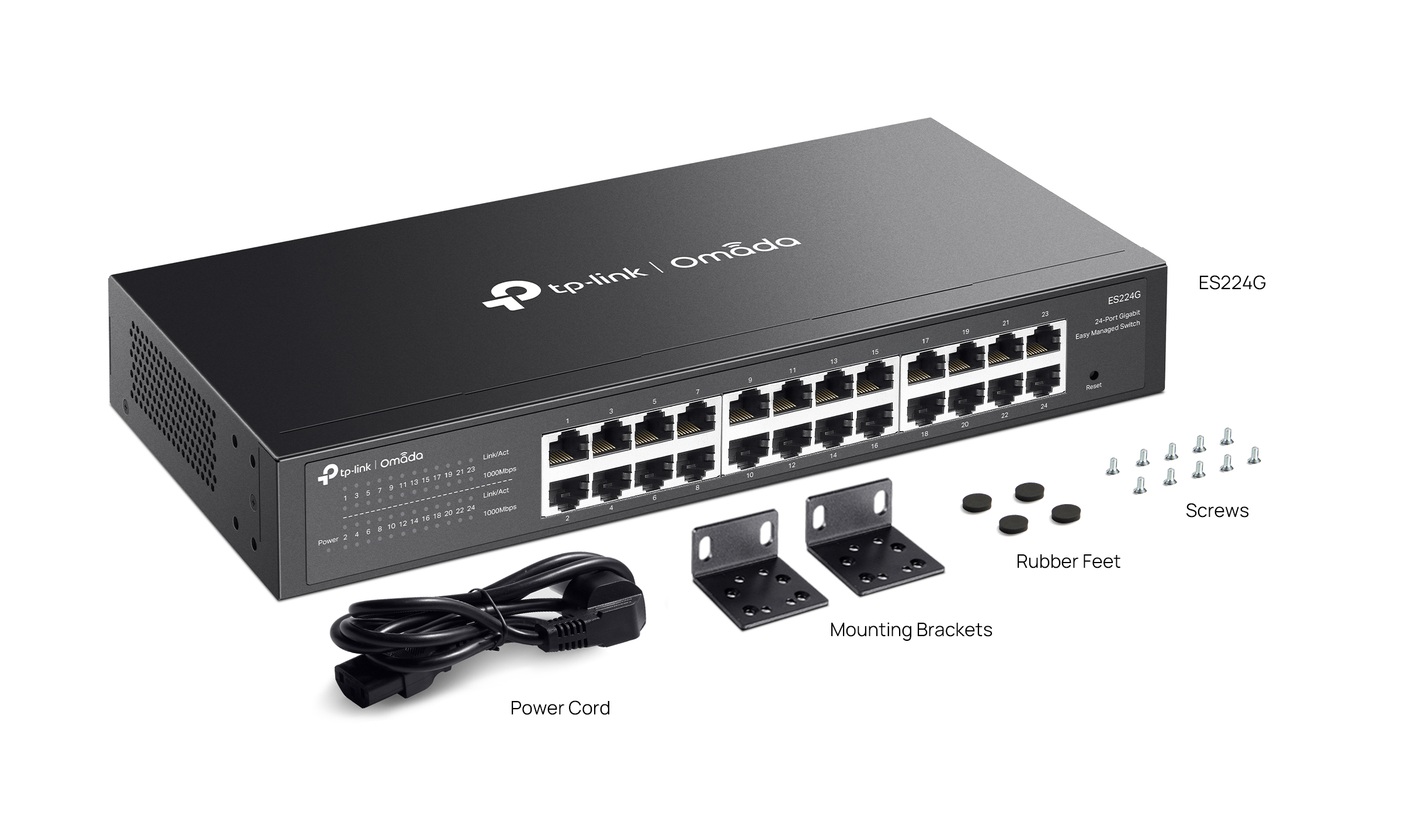

- Robust metal construction and the ability to mount on a desk or in a cabinet (rack)
Product features:
| Warranty | 60 months |
| Ethernet ports: | 24× 10/100/1000 Mbps RJ45 Ports |
| L2 Switching Features: | 802.1ab LLDP 802.3x Flow Control Fast Leave IGMP Snooping IGMP v1/v2/v3 Snooping Ingress/Egress/Both Loopback Detection Loop Prevention Many-to-One Mirroring Individual Mirror Port Status Port Mirroring Port Statistics Static Link Aggregation Traffic Statistics |
| Quality of service: | 8 priority queues Bandwidth control Priority schedule mode Queue weight configuration Storm control Support 802.1p/DSCP port-based priority |
| Virtual Local Area Network (VLAN): | 4K video 802.1Q tagged VLAN Max. 32 VLAN groups MTU VLAN Port-based VLAN |
| Mounting type: | Wall mount Desktop |
| Storage humidity: | 5%~90% non-condensing |
| Performance: | Jumbo frame 15 KB MAC address table 8K Packet buffer 4 Mbit Packet forwarding rate 35.7Mpps Switching capacity: 48 Gbps |

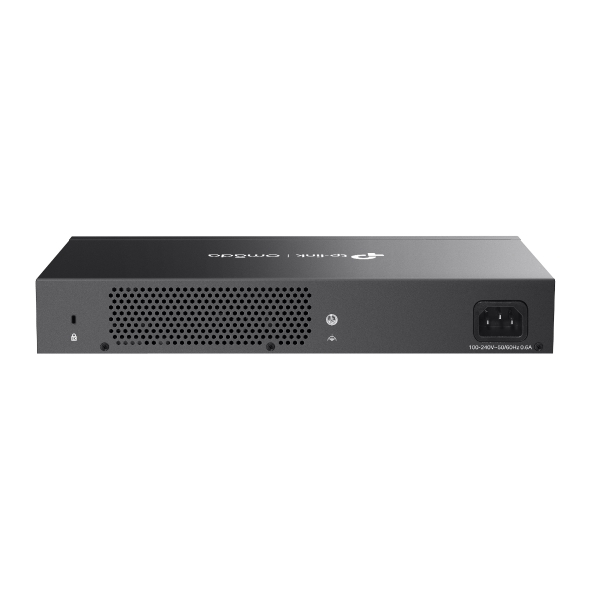

| Power Supply: | 100-240 V~50/60 Hz |
| Switching Protocol: | Ethernet |
| Network Features: | Auto MDI/MDIX Ports Auto Negotiation |
| Certificates: | CE FCC RoHS |
