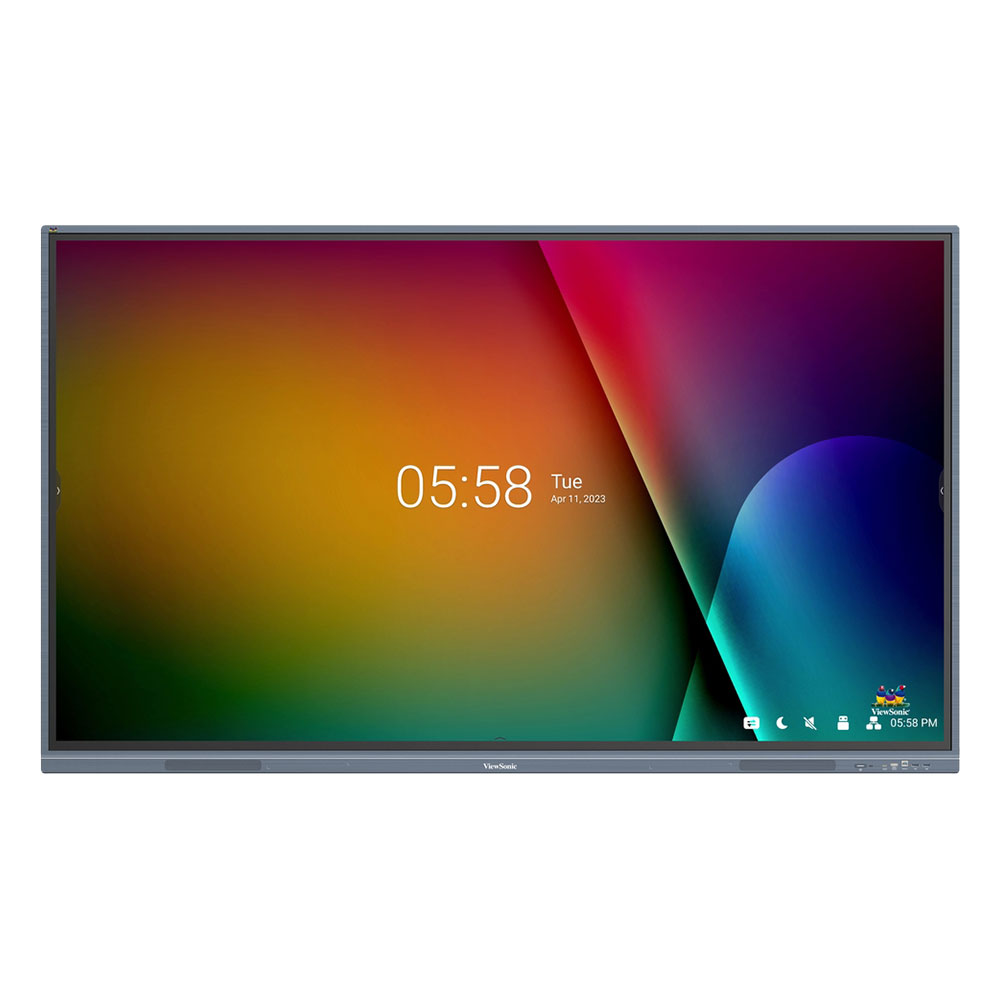

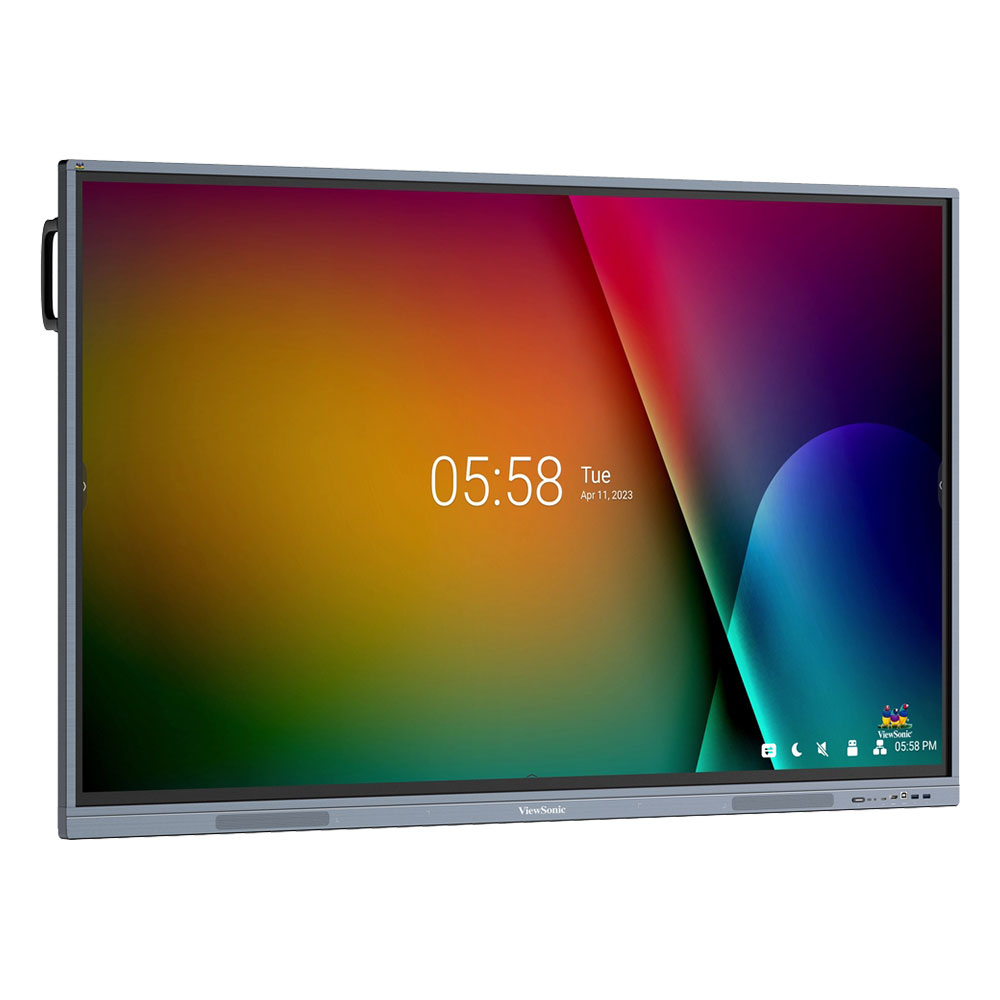

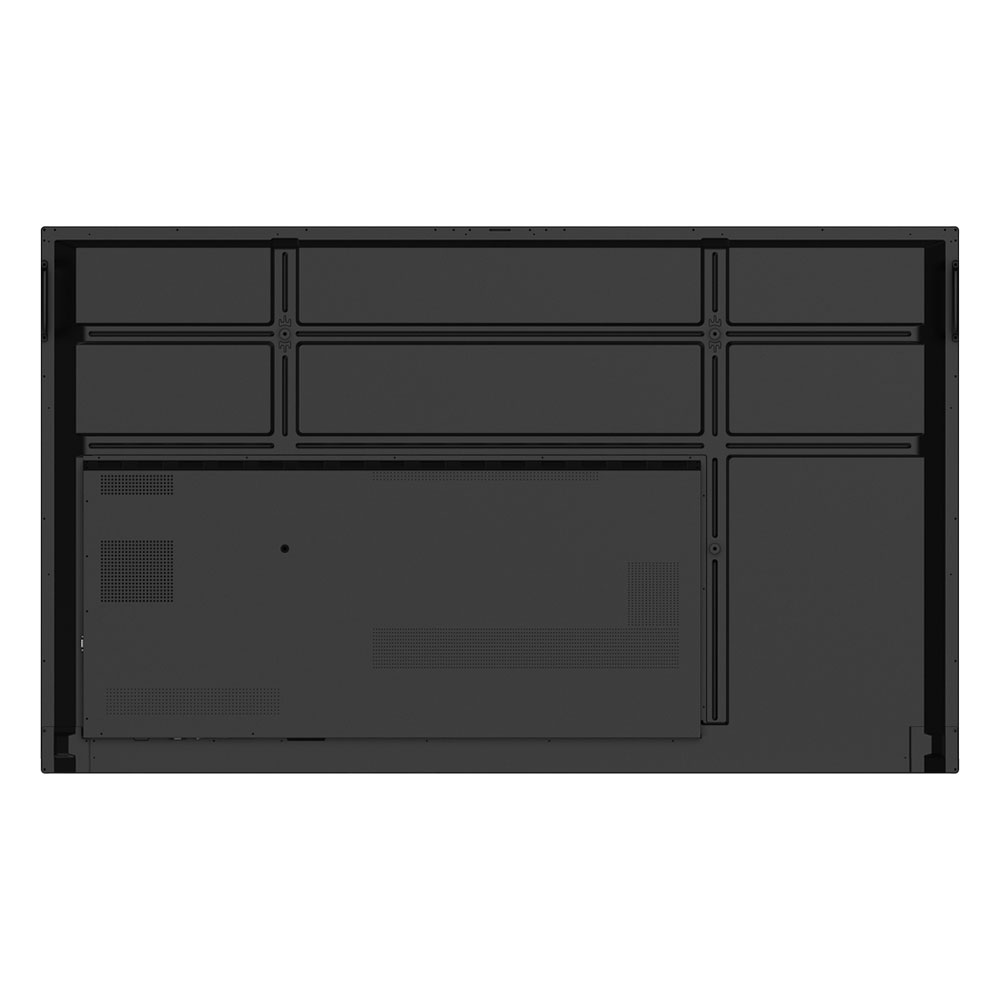

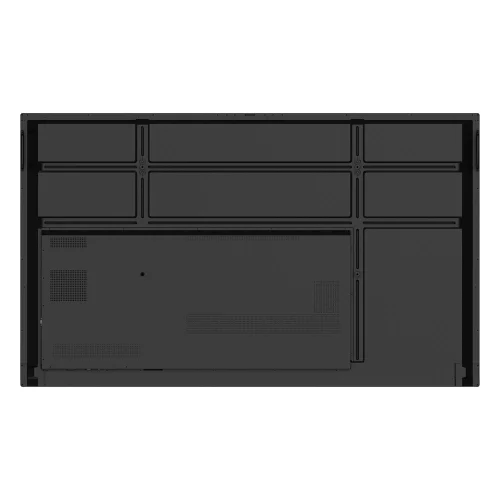

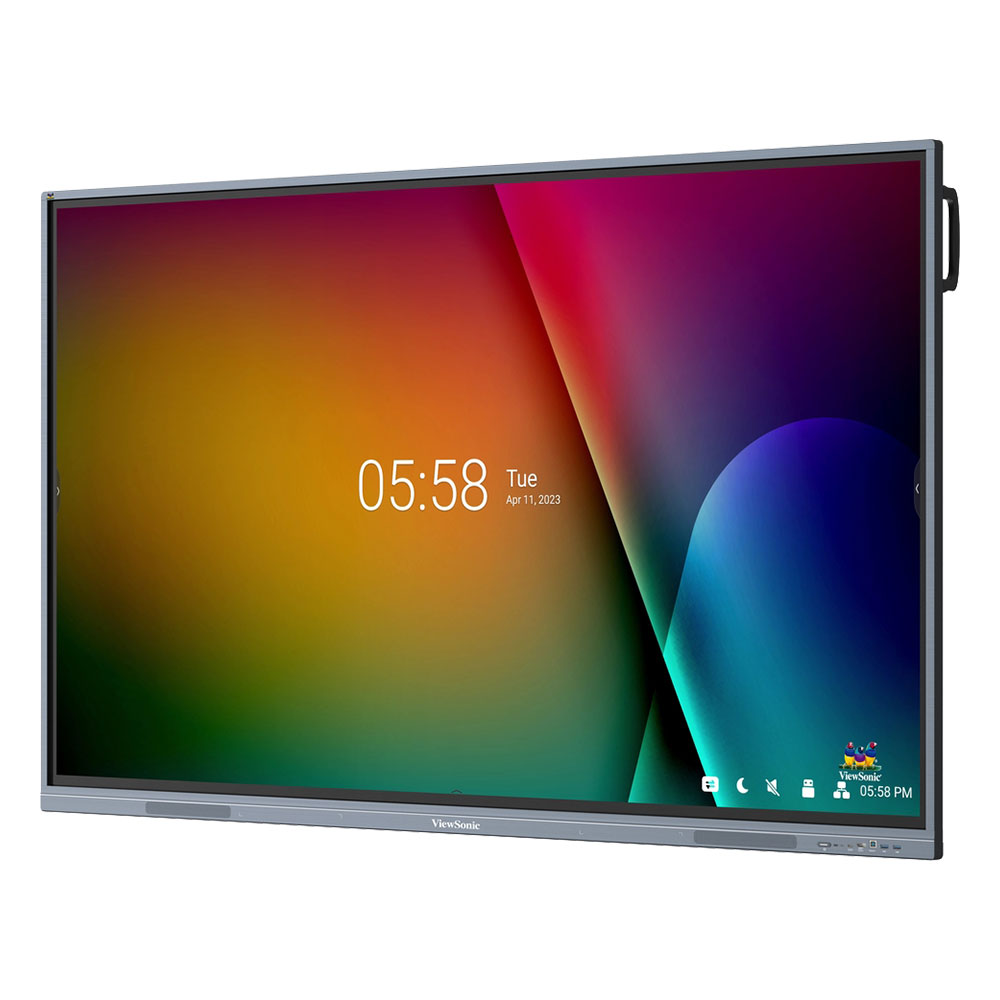

ViewBoard IFP7533-G interactive display
Interactive display ViewBoard IFP7533-G 75" 4K
- Integrated with myViewBoard software
- Multitasking capabilities for enhanced lesson delivery
- Enjoy simplicity and organization with a single USB-C cable solution offering 65W of power delivery.
- Intuitive user interface and fast app launch for seamless operation
- Powered by Android 11
The ViewBoard IFP33 series harmonizes a touch display with flexible software to create a complete solution for interactive and engaging classroom learning.
Delivers exceptional 4K UHD image quality, thanks to cutting-edge connectivity technology that delivers clearer colors, improved contrast, and reduced glare.
The 40-point touch interface, equipped with Ultra Fine Touch technology, enables students and teachers to collaborate seamlessly using their fingers or dual-tip pens for an intuitive pen-on-paper experience.
Powerful built-in front speakers and a USB-C port provide a rich and convenient multimedia experience.
The ViewBoard IFP33 series comes pre-installed with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.
Product features:
| Panel Size | 75" |
|---|---|
| Panel Type | TFT LCD module with DLED backlight. IPS |
| Display Area (mm) | 1649.664(H) × 927.936(V) (74.6” diagonal) |
| Aspect Ratio | 16:9 |
| Resolution | 4K UHD 3840x2160(pixels) |
| Colors | 1.07B colors |
| Brightness | 400 nits |
| Contrast | 5000:1 (Typical) |
| Response Time | 6ms |
| Viewing Angles | H=178, V=178 |
| Backlight Life | 50,000 hours |
| Surface Treatment | Hardness: 7H, 4mm tempered glass, anti-glare, anti-dust and anti-fingerprint technologies |
| Orientation | Landscape |
| Processor | Quad-core ARM Cortex (A55*4) |
| Graphics Processor | Quad-core ARM Mali G52 (4K Support UHD) |
| RAM memory | 8GB DDR4 |
| Memory | 64GB/128GB |
| Type/Technology | (IR) Ultra-Fine Touch technology. |
| Touch points | 20 for Android, 40 touch points for Windows. Touch accuracy: ± 1 mm. Air gap: 0.9 mm. |
| Inputs | HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz) RGB / VGA: x1 Audio: x1 RS232: x1 OPS: x1 (optional Intel Standard OPS) WiFi: x1 (optional VB-WIFI-002/VB-WIFI-004/VSB050) |
| Outputs | HDMI: HDMI 2.0 x1 Audio: x1 SPDIF: x1 |
| Local Area Network (LAN) | RJ45: x2 (Gigabit Ethernet) |
| USB | Type A: USB 3.0 x4 (front x2, rear x2); USB 2.0 x1 Type B: x2 (front x1, rear x1) Type C: front x1 (PD65W + DP1.2 + USB 2.0 data + 10M/100M sharing) |
| Speakers | 16W x 2 |
| Camera top plate | Yes |
| Embedded operating system | Android 11 (upgradable to the next 3 versions of the operating system) |
| Bundled Software | Basic Annotation Software: myViewBoard Whiteboard Pro Annotation Software: myViewBoard for Windows (built into optional Windows Slot-in PC) Wireless Presentation: myViewBoard Display Device Management: Remote Device Management: myViewBoard Manager Wireless Presentation with Touch Feedback: Viewboard Cast: Yes |
| Special Features | All-in-one USB Port: (combines USB port for PC/Android/HDMI) Front “SmartPort™ USB“ to all channels. Easy LAN sharing between IFP and device with built-in sensor: 10/100M for Android and PC with built-in sensor. Light sensor: Yes |
| Power | Voltage: 100-240V AC Consumption: On: 106W; Off: ≤ 0.5W |
| VESA | 800x400 |
| Operating environment | Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH non-condensing |
| Dimensions | 1709 x 1020 x 88 mm |
| Weight | 47.3 kg/104.3 kg |
| Regulations | FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM and RoHS DoC, ErP, REACH SVHC list and DoC, EEL, WEEE, BSMI, BIS |
| Package Contents | 1. Power cable 3m (from delivery area) 2. Remote control with AAA battery 3. USB cable for touch screen 3m 4. Touch pen x 2 (VB-PEN-009) 5. Quick start guide + Declaration of conformity 6. RS232 adapter 7. Bracket x 5 8. Camera plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m |
| Compatible PC with slot | VPC2-O series/series VPC2-O-1B/VPC12-WPO-15/16 |
| Note | Other Applications: Live, Record, PIP, Split Screen, Lock Screen |
| Warranty | 24 Months |
